Steel Grit

Steel Grit - Premium Sandblasting Material | Gritiva Egypt

Steel Grit

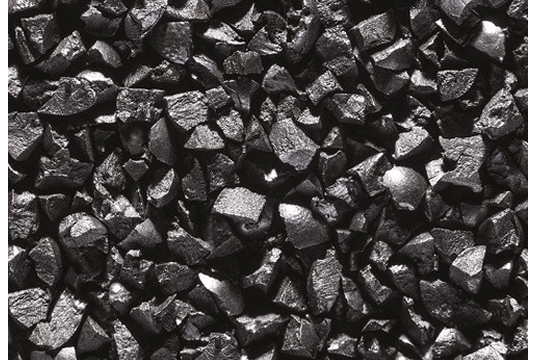

Steel Grit represents a sophisticated high-carbon steel abrasive material, meticulously engineered through advanced metallurgical processes. Manufactured by combining carbon, manganese, and silica with steel manufacturing waste materials—including pipes, profiles, sheets, and scrap—this premium abrasive is produced through precision induction furnace melting at temperatures between 1600-1650°C.

Following atomization and water cooling, the material undergoes controlled annealing and rapid quenching to develop a martensitic structure with exceptional hardness characteristics around 63 HRC. This advanced production methodology enables precise hardness control ranging from 40 to 63 HRC, optimizing performance for diverse industrial sandblasting applications.

1600°C
Melting Temperature
63 HRC
Maximum Hardness
40-63
HRC Range
10-15%
Material Cost Ratio

Manufacturing Process

Advanced metallurgical techniques for superior abrasive performance

Raw Material Composition

Steel Grit production utilizes high-quality steel manufacturing waste materials combined with precisely controlled additions of carbon, manganese, and silica. This sustainable approach transforms industrial scrap—including pipes, profiles, sheets, and miscellaneous steel waste—into premium abrasive media through advanced recycling and refinement processes.

Induction Melting

The carefully selected raw materials undergo precision melting in induction furnaces at extreme temperatures between 1600-1650°C. This high-temperature processing ensures complete homogenization of alloying elements and creates a uniform molten steel composition essential for consistent abrasive performance characteristics.

Atomization & Cooling

Following complete melting, the molten steel is atomized into fine particles and rapidly cooled in water. This controlled solidification process creates the desired particle size distribution and initial microstructure, establishing the foundation for subsequent heat treatment operations that develop the material's final properties.

Martensitic Structure Development

Cast particles are carefully annealed in specialized furnaces to predetermined temperatures, then rapidly quenched in water. This critical thermal treatment creates a martensitic crystal structure with exceptional hardness around 63 HRC. Subsequent tempering processes enable precise hardness adjustment between 40-63 HRC to match specific application requirements.

Critical Performance Factors

Understanding hardness requirements for optimal sandblasting efficiency

Hardness Requirements
+3 to +5 HRC
The fundamental principle of effective sandblasting demands that abrasive material hardness must exceed the target surface hardness by 3-5 HRC units minimum. This differential ensures efficient material removal and optimal surface preparation without premature abrasive degradation.
Process Efficiency
Time & Cost Optimization
Proper hardness selection dramatically accelerates cleaning processes while achieving desired surface roughness characteristics. Using appropriately hard abrasive materials minimizes processing time, reduces labor requirements, and optimizes energy consumption for maximum operational efficiency.
Cost Structure Analysis
Material vs. Operations
Sandblasting material costs represent only 10-15% of total process expenses, while labor and energy consumption account for the remaining 85-90%. Strategic selection of appropriate hardness and grain size directly impacts operational costs, making material choice crucial for economic efficiency.
Hardness Flexibility
40-63 HRC Range
The martensitic structure production method provides exceptional versatility, enabling hardness customization throughout the 40-63 HRC spectrum. This flexibility allows precise material specification matching diverse substrate hardness requirements across multiple industrial applications.
Performance Consequences
Under-Hardness Impact
Utilizing abrasive materials softer than the target surface extends processing time exponentially and fails to achieve specified cleaning standards. This mismatch increases labor costs, elevates energy consumption, and compromises surface preparation quality, directly impacting production economics.
Grain Size Selection
Critical Parameter
Beyond hardness considerations, optimal grain size selection proves equally critical for process efficiency and cost management. Proper size specification ensures desired surface profiles, minimizes material consumption, and maximizes abrasive lifespan while maintaining consistent quality standards.

Industrial Applications

Serving diverse sectors with premium abrasive solutions

Foundries
Steel Mills
Machinery Manufacturing
Automotive Industry
Rolling Mills
Shipyards
Railway Sector
Construction
Steel Industry
Granite Sector
Metal Industry
Surface Treatment

Similar Posts
